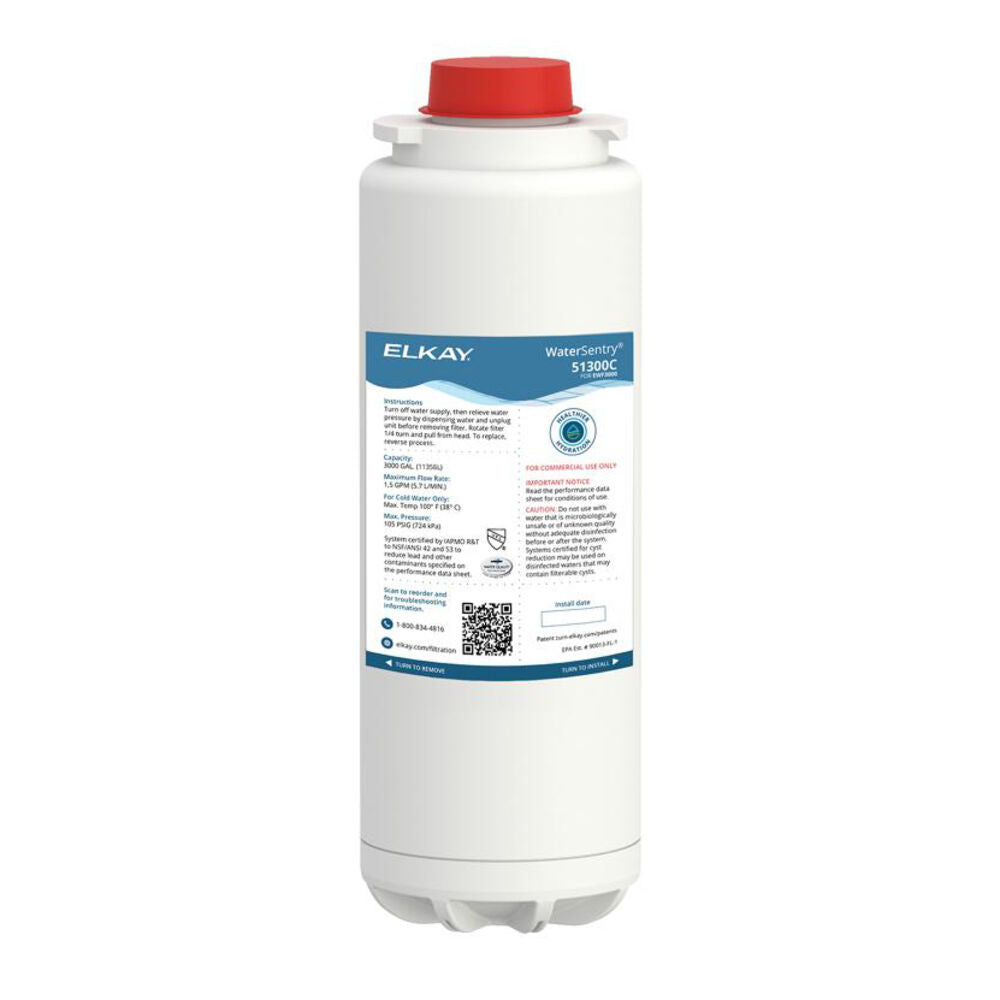

Elkay 51300C WaterSentry Filter (1 Pack)

The Elkay 51300C filter 1 pack provides one cartridge as an Elkay 51300C replacement filter for compatible Elkay bottle filling stations, Liv Pro water dispensers and Universal EWF3000 WaterSentry filtration systems. The Elkay WaterSentry 51300C uses activated carbon filtration to help reduce lead, chlorine taste and odour, particulate and microplastics from incoming water. This 51300C water filter uses a quick-disconnect, 1/4-turn connection for straightforward replacement, making it a practical Elkay bottle filler filter for compatible systems.

Product Details

• Product Name: Elkay 51300C WaterSentry Replacement Filter
• Pack Quantity: 1 Filter
• Part Number: 51300C
• Brand: Elkay
• Filter Type: Elkay WaterSentry replacement filter
• Filter Media: Activated carbon
• Filtration: Lead, Class 1 particulate, chlorine taste and odour, and microplastics
• Capacity: 3,000 gallons / 11,356 litres
• Service Life: Up to 1 year
• Micron Rating: 0.5 micron
• Flow Rate: 1.5 GPM / 5.6 L/min
• Water Temperature: 40–100°F / 4–38°C
• Minimum Water Pressure: 20 psi / 138 kPa
• Maximum Water Pressure: 105 psi / 724 kPa
• Initial Pressure Drop: 2–5 psi / 14–34 kPa
• Water Inlet: 3/8-inch outside diameter tube
• Water Outlet: 1/4-inch outside diameter tube
• Dimensions: 3-1/8 × 3-1/8 × 9-1/2 inches
• Installation: Quick-disconnect, 1/4-turn connection
• Certifications: NSF 42, NSF 53, NSF 372 and NSF/ANSI 401

Special Features

3,000-Gallon Capacity

The Elkay 51300C provides up to 3,000 gallons of filtration capacity, making this Elkay 3000 gallon filter suitable for regular use in compatible bottle filling and water dispensing systems.

Lead and Particulate Reduction

The Elkay WaterSentry 51300C is tested and certified to reduce lead and Class 1 particulate from incoming water, helping provide cleaner filtered water through compatible Elkay systems.

Microplastics Reduction

The 51300C WaterSentry filter is tested and certified to NSF/ANSI 401 for the reduction of microplastics in the water supply.

Chlorine Taste and Odour Reduction

Activated carbon filtration helps reduce chlorine taste and odour, supporting better-tasting water from compatible Elkay drinking-water systems using the 51300C water filter.

0.5-Micron Filtration

The 0.5-micron rating provides fine particulate filtration for compatible WaterSentry systems while maintaining a 1.5 GPM flow rate.

1/4-Turn Installation

The Elkay bottle filler filter features a quick-disconnect 1/4-turn design that makes filter replacement straightforward. The Elkay WaterSentry replacement filter also works with an automatic inlet shut-off valve that closes when the cartridge is removed.

Installation Instructions

1. Locate the WaterSentry filter beneath or behind the compatible bottle filling station or dispenser.
2. Hold the existing cartridge and turn it approximately one-quarter turn to unlock it.
3. Pull the old filter straight out of the filter head.
4. Remove the protective packaging from the new 51300C cartridge.
5. Align the new cartridge with the filter head.
6. Push the cartridge into place and turn it one-quarter turn until it locks.
7. Check that the cartridge is seated securely.
8. Run water through the system according to the equipment manufacturer's flushing instructions before normal use.
9. Check the connections for leaks before returning the unit to regular operation.
